Constructed from premium Q700 steel, the Starway Vehicle flatbed semi-trailer offers exceptional strength and durability. Its advanced steel composition, boasting tensile strength two grades higher than industry standards and ten times the torsional rigidity of ordinary steel, ensures minimal maintenance requirements and maximizes the vehicle’s overall value.

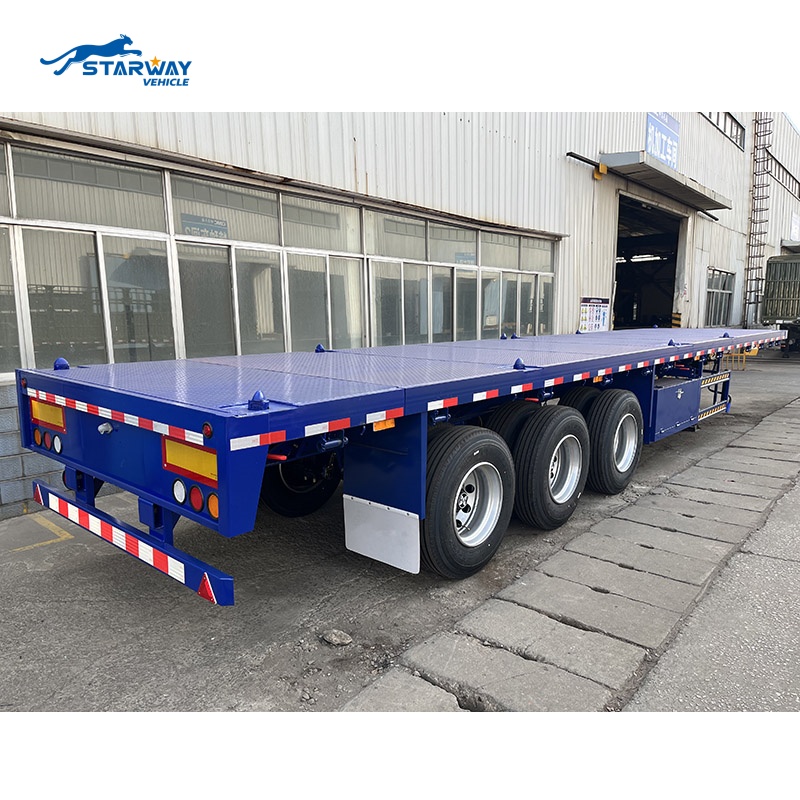

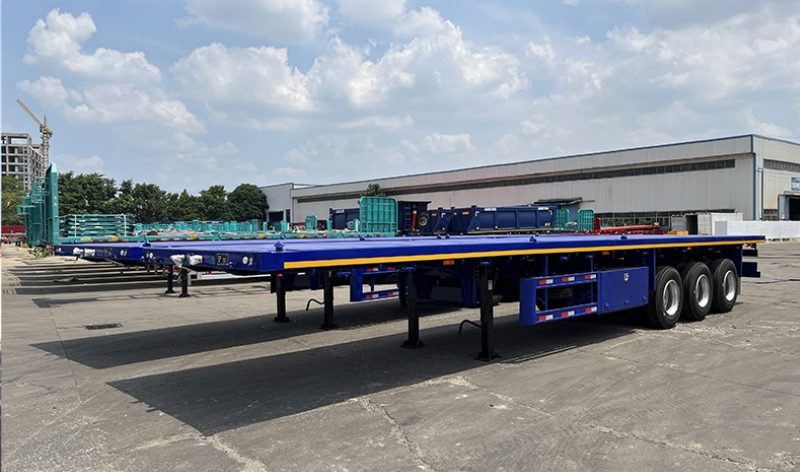

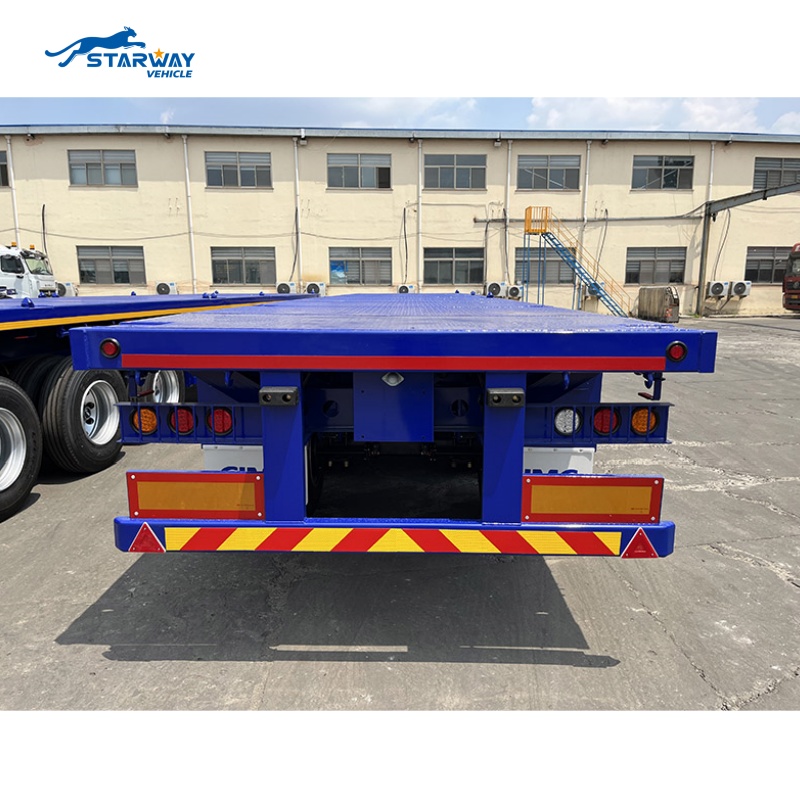

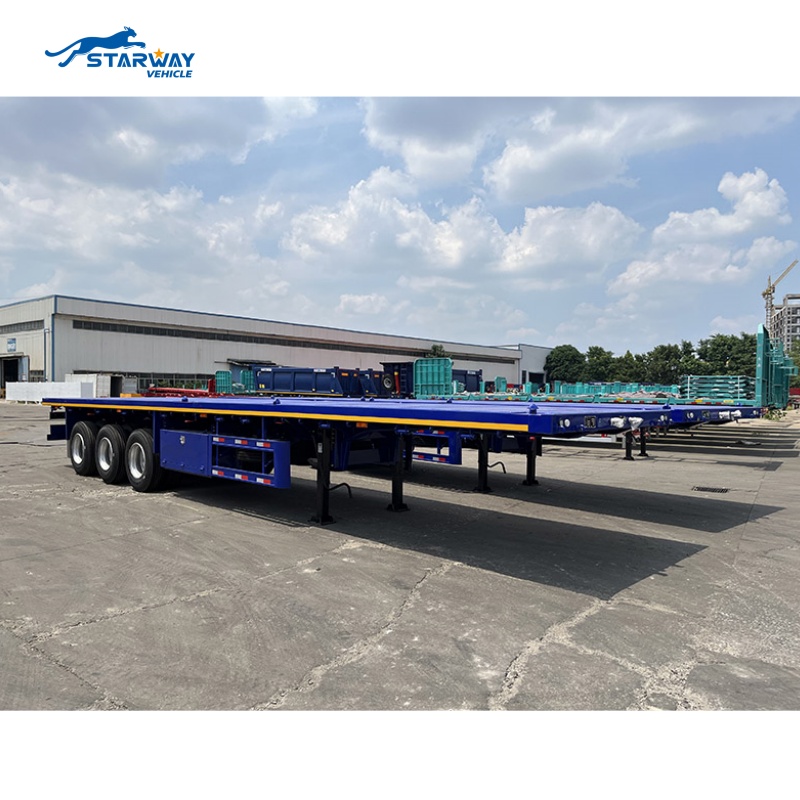

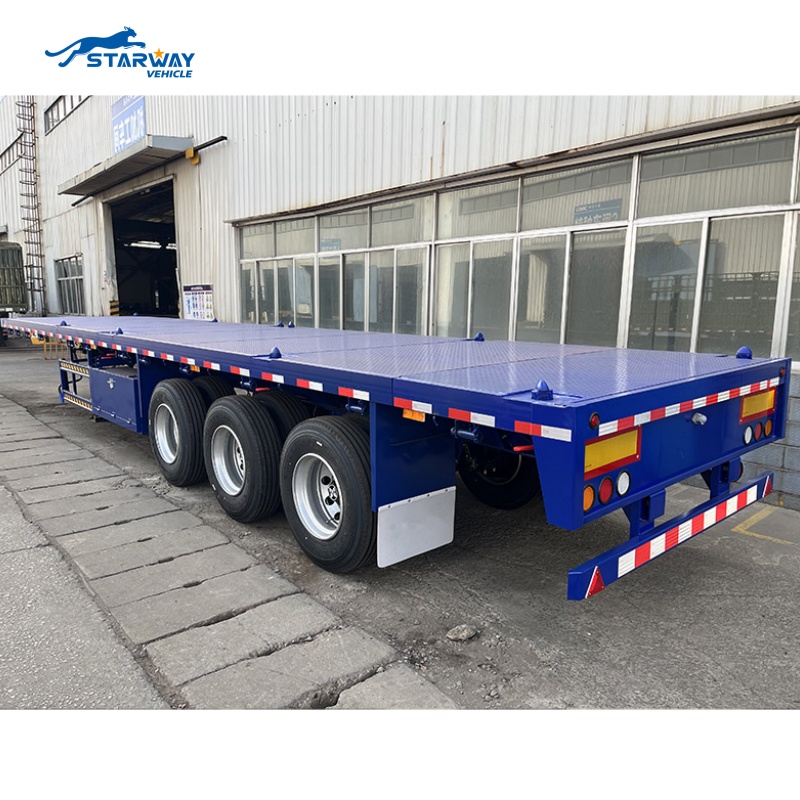

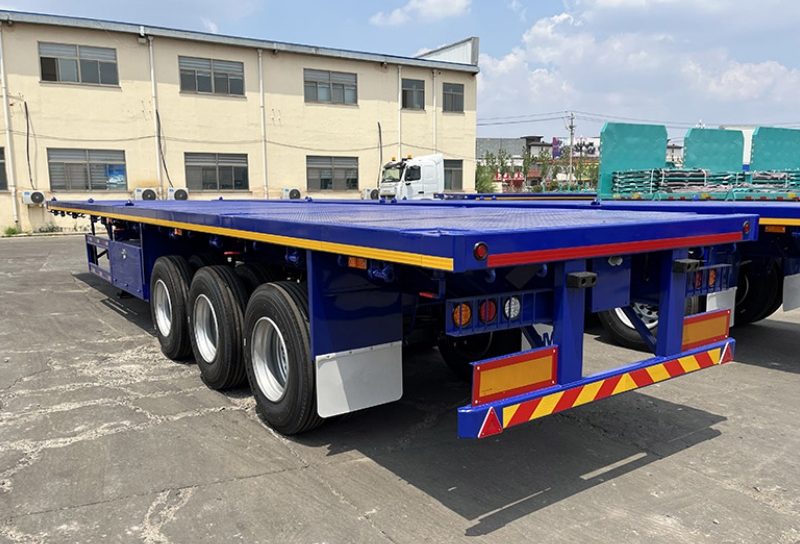

Shipping Container Flatbed Tri-Axle Semi Trailer
Shipping Container Flatbed Tri-Axle Semi Trailer
Features:
- Improved Safety Performance: The strong and durable construction enhances the vehicle’s safety performance, protecting both the driver and the cargo.
- Environmental Friendliness: Lower fuel consumption and reduced emissions make the vehicle more environmentally friendly.
- Enhanced Resale Value: The vehicle’s durability, efficiency, and versatility contribute to a higher resale value.
- Superior Performance in Harsh Conditions: The robust construction ensures reliable performance in challenging environments, including rough terrains and extreme weather conditions.
Product Details
The Specifications of STARWAY VEHICLE dump semi trailer :
Brand ：Starway Vehicle
Loading Capacity : 30-80 Tons
Gooseneck Type : Yes
Material : Q345/T700
Platform Thickness : 3mm
Dimension : 12400*2500*1570mm (Can be designed )
Color : Per customer’s requirement
Axles : 2/3/4 Axles *13/16 Ton FUWA/BPW/Starway Vehicle/Other
Tire : 12R22.5(8/12Pcs) Linglong/Triangle/Double-Coin/Bridgestone/Other Brand
Rim : 9.00*22.5(8/12Pcs)
Leaf Spring : 90mm*13mm*10/90mm*16mm*10Pcs
King Pin : 50#(2”)/90#(3.5”)JOST/Other Brand
Landing Gear : 28 Ton Two Speed,JOST/Other Brand
Suspension : Mechanical suspension or air suspension(brand optional)
Leaf spring : Leaf spring 10pcs*90*13mm or air bag
Landing gear : JOST or other brand two-speed, landing gear 28T
Electrical System : 24V 7-way socket; front marker lamp: white; side marker lamp: white & red; rear lamp: red; turning signal lamp: amber; wiring: electric cable protected by PVC conduit on main frame
Braking System : Dual line pneumatic brake, SAE hose and connector,without ABS
Accessories : Toolbox*1; spare tire carrier*2 , 12 pcs container twist locking
